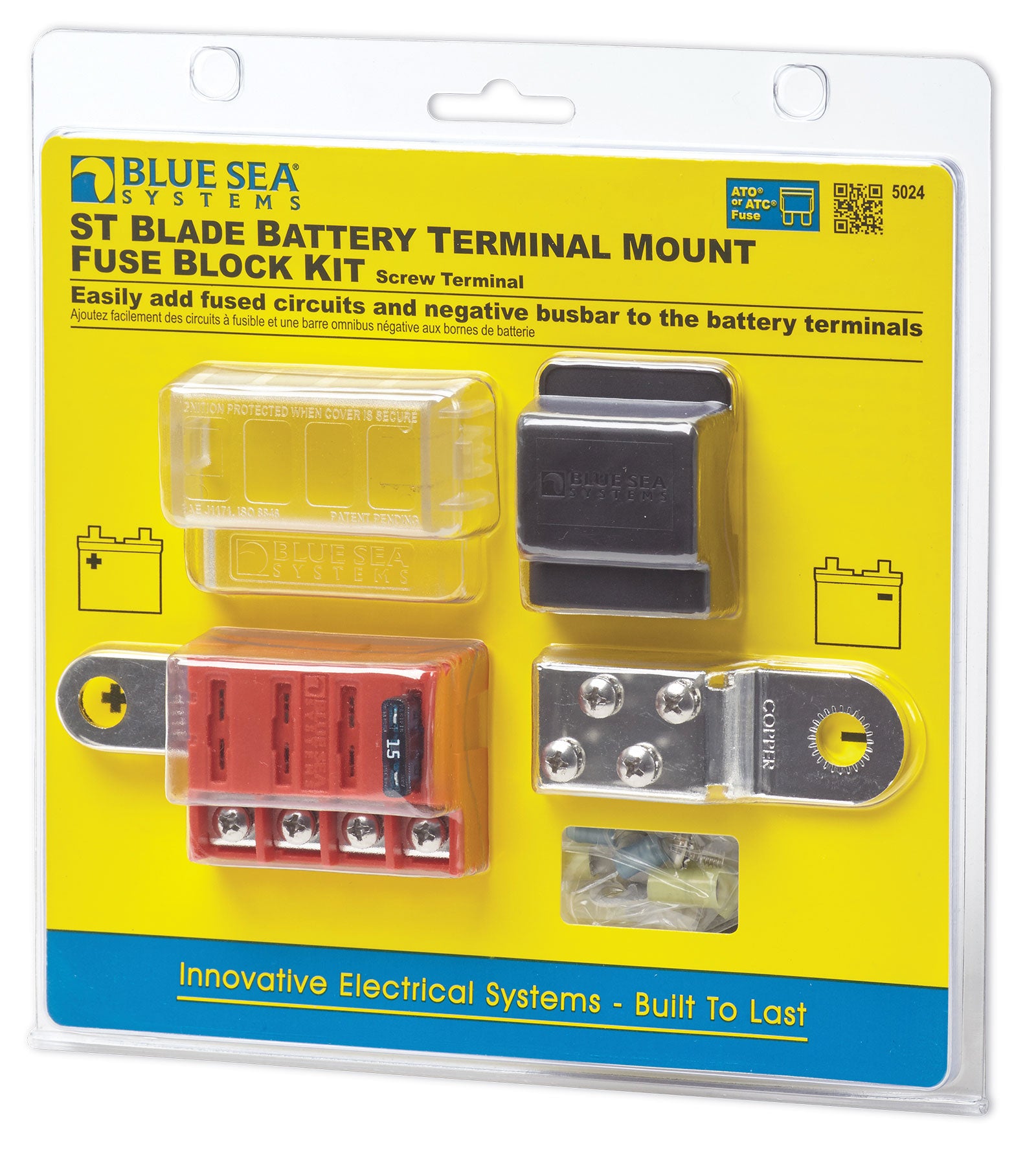

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block Kit

Model: 5024

• Mounts on the battery terminal stud


• Screw terminals for securing wires


• Nylon insulated ring terminals included for each screw terminal


• Accepts small format circuit labels


• Insulating cover meets ABYC/USCG insulation requirements


• Ignition Protected—meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment


• Includes a 4-circuit negative busbar


• Includes write on labels


• Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals

Specifications
Circuits4Maximum Amperage100A per block
30A per circuitMaximum Voltage32V DCBus MaterialTin-Plater Copper C11000Mounting Hole3/8" (M10) StudScrew Terminal Torque18 in-lb (2.03 Nm)Screw Terminal Type#8-32Weight0.50lb (0.23 kg)
