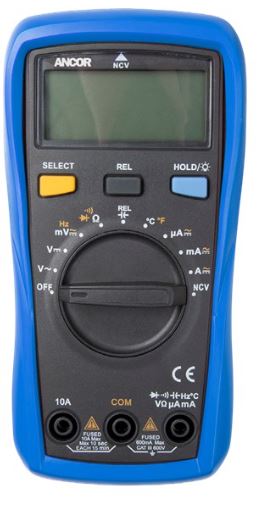

Ancor True RMS 12 Function Digital Multimeter

Ancor True RMS 12 Function Digital Multimeter

Ancor True RMS 12 Function

Digital Multimeter

Model: 703073

• Auto ranging capability allows the meter to automatically determine the resolution based on the application


• Clear LCD display


• Comfortable protective cover, with test lead hanging groove


• High voltage warning


• Auto power off functionality to save battere life


• Batteries: two AAA Batteries (not included)


• Continuity


• Diode Test


• NCV

Specifications
DC Voltage (V)600.0mV, 6000mV/6.000V, 60.00V, 600.0VAC Voltage (V)600.0mV, 6000mV/6.000V, 60.00V, 600.0VDC Current (A)600.0uA, 6000uA, 60.00mA, 600.0mA, 6.000A, 10.00AAC Current (A)600.0uA, 6000uA, 60.00mA, 600.0mA, 6.000A, 10.00AResistance600.0, 6000/6.000k, 60.00k, 600.0k, 60.00MCapacitance (F)9.999nF, 99.99nF, 999.9nF, 9.999uF, 99.99uF, 999.9uF, 9.999mFFrequency (Hz)10.00Hz-1.000MHzTemperature (°F)-40°F to 1832°FTemperature (°C)-40°C to 1000°COverload Protection600V rmsCAT RatingCAT 111 600V
